How to Install Outdoor LED Signs: Step-by-Step Installation Guide
Outdoor LED signs are a powerful tool for businesses to attract attention and communicate messages clearly, day or night. Installing these digital displays correctly is crucial to ensure durability, vibrancy, and safety. Whether you are a business owner, contractor, or signage installer, this actionable guide will walk you through the step-by-step process of installing outdoor LED signs, with professional tips to achieve the best results.
At the forefront of outdoor LED signage excellence in Pakistan is Sign Craft — the leading provider of premium SMD screens, 3D LED signboards, and LED display services, known for quality, innovation, and reliability.
Proper installation is not just about mounting a sign; it's about ensuring optimal performance, safety, and longevity. A poorly installed LED sign can lead to electrical hazards, reduced lifespan, and poor visibility, defeating the purpose of your investment.
Need professional LED sign installation? Call us or WhatsApp us at +92 3008599612 for expert service!
What Are Outdoor LED Signs?
Outdoor LED signs are high-brightness digital displays designed to withstand external weather conditions while delivering sharp visual content such as advertisements, announcements, or brand promotions. These signs can be customized in size and design, and often use Surface-Mounted Device (SMD) technology for vibrant, energy-efficient displays ideal for outdoor environments.
Why Proper Installation Matters
Correct positioning ensures your message is seen clearly from intended viewing angles.
Proper installation protects against rain, dust, and temperature extremes.
Compliant wiring and grounding prevent hazards and ensure regulatory compliance.
Well-installed signs are easier to clean, repair, and maintain over time.
Durable, well-performing signs deliver better long-term value and customer engagement.
Step-by-Step Installation Guide for Outdoor LED Signs
Before any physical work, choose a strategic location:
- Ensure the sign is visible from your target audience's typical viewing distance and angle.
- Check for nearby power sources compatible with your LED sign's voltage.
- Confirm there is a sturdy support wall, pole, or structure to mount the sign securely.
- Clear the area of debris and obstacles to create a safe working environment.
Carefully unpack the LED sign modules, frame, cables, brackets, and mounting hardware. Check for any damage or missing parts. Verify that the screen and its parts are compatible with the installation site and requirements.
Align LED modules in the correct sequence to form the full display. Use connecting iron pieces or clips to join the LED boxes securely from the front (which also benefits future maintenance). Fasten bolts on the cabinet edges to hold modules tightly.
Attach the brackets to the back of the LED sign frame with the provided bolts. Depending on your mounting surface (wall, pole, roof), configure brackets to ensure maximum stability. Some installations require multiple bracket connections to distribute weight evenly and allow for front or rear maintenance access.

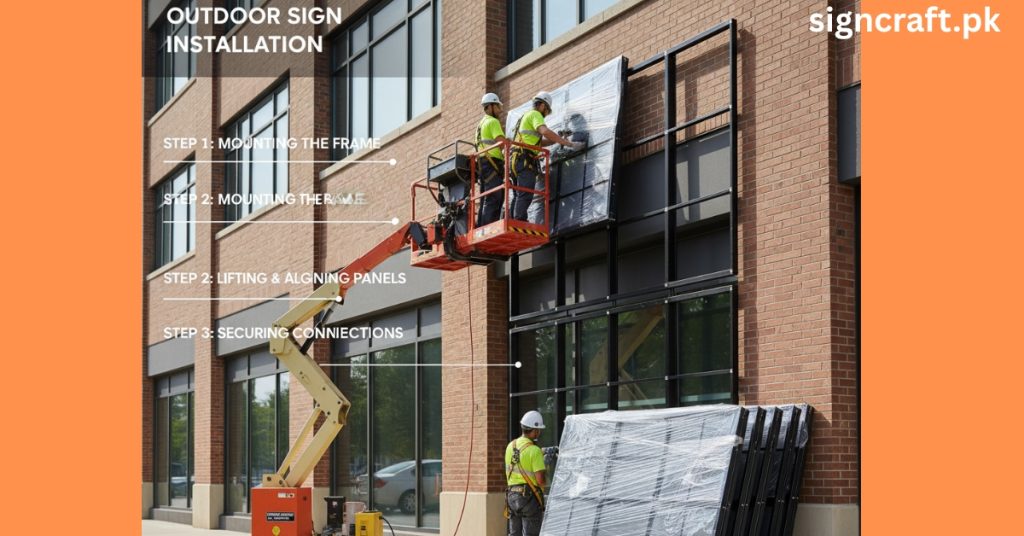

Lift the LED sign carefully with the help of appropriate personnel or cranes for large installations. Use cable ties, bolts, or a dedicated mounting system to secure the sign firmly. Verify the installation is level and the sign is aligned properly to maximize visibility.
Connect power cables inside the LED modules via terminal blocks. Route wires through reserved holes between cabinets, ensuring no pinching or exposed wiring. Check grounding; outdoor LED signs must be grounded with resistance less than 3 ohms to protect against lightning and electrical surges.
Seal all cable entry points with weather-resistant materials. Confirm the LED sign's enclosure is rated for outdoor use (IP65 or higher recommended). Consider installing lightning arresters and protective covers to enhance durability.
Power on the sign and check all modules for uniform brightness and color. Test remote controls or control system software if applicable. Make adjustments for optimal brightness, viewing angle, and content display.
Schedule periodic checks to clean the sign, tighten bolts, and test electrical connections. Front maintenance-friendly designs are preferred to reduce downtime and simplify repairs.
Essential Tips for Outdoor LED Sign Installation
| Tip | Description |
|---|---|
| Choose Ideal Location | Avoid direct, harsh sunlight; utilize shaded areas if possible for longer screen lifespan. |
| Use Qualified Electricians | Ensure all electrical connections abide by safety standards and regulations. |
| Protect Against Environmental Factors | Install protective enclosures against moisture, dust, and extreme temperatures. |
| Employ Safety Equipment | Use cranes, harnesses, and safety helmets during installation, especially at heights. |
| Perform Calibration | Calibrate brightness and color uniformity according to ambient light and signage distance. |
Why Choose Sign Craft for Your Outdoor LED Displays?
Sign Craft is a top-rated SMD screen and LED display services provider specializing in customized outdoor LED solutions. Located in Rawalpindi and Islamabad, Sign Craft combines advanced technology, expert craftsmanship, and hands-on experience to deliver vibrant, durable LED signs tailored to your needs.
- Superior Quality: High-resolution SMD LED modules for clear visibility.
- End-to-End Services: From manufacturing to installation and maintenance.
- Trusted Expertise: Hundreds of satisfied clients across Pakistan.
- Cutting-Edge Design: Offering innovative 3D LED signboards and road reflector signs.
- Durable and Energy Efficient: Designed to last and save energy in challenging outdoor environments.
Summary Table: Outdoor LED Sign Installation Process
| Step Number | Installation Task | Key Actions |
|---|---|---|
| 1 | Plan & Prepare Site | Location selection, power source check, removal of obstacles |
| 2 | Unbox & Inspect Components | Verify all parts and modules |
| 3 | Assemble LED Modules & Frame | Align modules, connect with iron pieces and fasten bolts |
| 4 | Install Mounting Brackets | Attach brackets to frame tailored to mounting surface |
| 5 | Mount Sign | Secure on wall/pole/roof, ensure level and alignment |
| 6 | Connect Electrical Wiring | Safe wiring, grounding under 3 ohms resistance |
| 7 | Weatherproof Installation | Seal entries, confirm IP rating, lightning arresters |
| 8 | Test LED Sign | Power on, color and brightness checks, calibration |
| 9 | Set Up Maintenance | Plan cleaning, tightening, troubleshooting schedules |
Installing an outdoor LED sign is a technical yet manageable process that demands careful planning and attention to detail. By following this step-by-step guide, businesses and installers can ensure that their LED displays perform optimally and have long-lasting impact.
For professional manufacturing, expert installation, and reliable maintenance of outdoor SMD LED screens, Sign Craft is your trusted partner. Their mastery in LED signage makes them the top choice for dynamic, high-quality outdoor displays across Pakistan.
Ready to install your outdoor LED sign? Contact Sign Craft today or WhatsApp +92 3008599612 for a consultation!
