Controller Systems for LED Displays

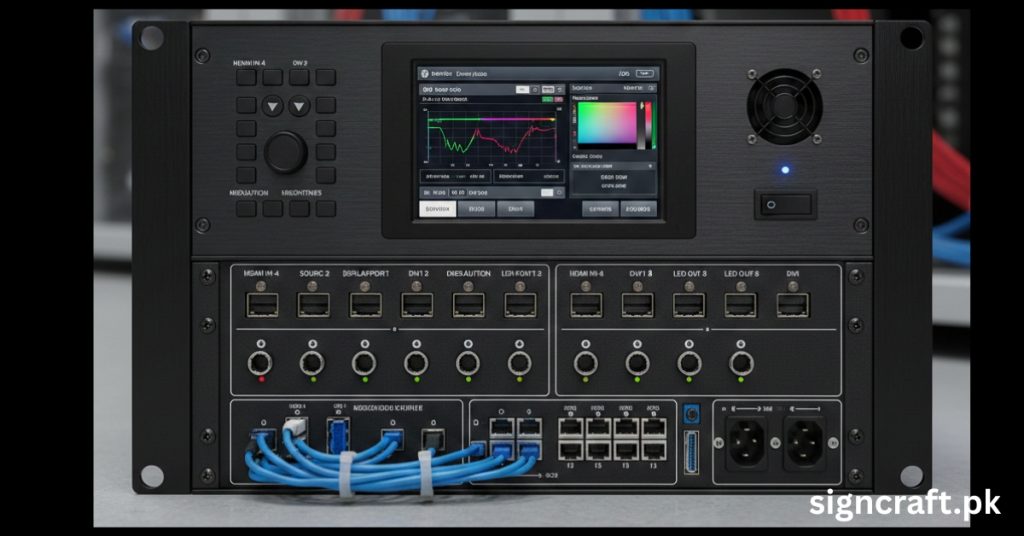

Controller systems are the essential brains behind LED displays, managing signal processing, synchronization, and content delivery for seamless visuals. They ensure high-performance operation, especially for SMD screens used in advertising and digital signage.

LED displays rely on controller systems to translate digital inputs into vibrant, synchronized visuals across thousands of pixels. These systems process video signals, handle pixel mapping, and optimize brightness and color for applications from indoor retail screens to outdoor billboards. In Pakistan's growing digital signage market, reliable controllers are crucial for durability in diverse weather conditions.

For businesses seeking top-tier SMD screen and LED display services, Sign Craft stands out as a leading provider. Specializing in high-resolution SMD screens and 3D LED signboards, Sign Craft integrates advanced controller systems for vibrant, energy-efficient displays tailored to local needs.

What Are Controller Systems?

Controller systems serve as the core processing unit for LED displays, receiving inputs like HDMI or DVI and converting them into pixel-level instructions. They include sending cards, receiving cards, and software hubs that manage data flow from source to screen.

Key functions involve signal decoding, grayscale adjustment, and scan mode support (e.g., 1/4 to 1/32 scan). Without a robust controller, displays suffer from flickering, color inaccuracies, or latency issues.

Types of LED Display Controllers

LED controllers fall into two primary categories: synchronous and asynchronous, each suited to different use cases.

Synchronous Controllers

These real-time systems mirror computer outputs, ideal for video-heavy applications like live events or broadcasts. They support unlimited display modes, 4K/8K resolutions, and high refresh rates up to 3840Hz. Examples include Novastar's H5 series for multi-zone control.

Asynchronous Controllers

Standalone units store and playback pre-loaded content via USB or network, perfect for static ads or unattended signage. They offer simpler operation without constant PC connection but limit dynamic modes like pop-ups.

Other variants include DMX for professional lighting (up to 512 channels) and smart WiFi/Bluetooth options for home or small-scale setups.

Controller Type	Best For	Key Features	Drawbacks
Synchronous	Live video, events	Real-time sync, high-res support (8K), multi-window	Requires PC, complex setup
Asynchronous	Static ads, signage	Offline playback, easy operation	Limited modes, lower refresh
DMX/DALI	Stage, architecture	Scalable channels, scene programming	Higher cost for large installs
Smart (WiFi/BT)	DIY, retail	App control, automation	Limited pixel capacity

How Controller Systems Work

The workflow starts with input reception (HDMI/DVI/USB), followed by decoding and frame buffering. The main controller slices images into data packets sent via Ethernet to receiving cards in LED cabinets, which drive individual SMD pixels.

Synchronization ensures uniform refresh across modules, preventing tearing. Advanced processing includes color correction, brightness auto-adjust, and low-latency modes for interactive displays.

For SMD screens, controllers handle fine-pitch modules (e.g., SMD1515 indoor), optimizing for high pixel density.

Key Features of Modern Controllers

Novastar excels in HDR/8K, while Colorlight offers flexible interfaces.

Popular Controller Brands Comparison

Brand	Strengths	Pixel Capacity	Ideal Use
Novastar	HDR/8K, EMI protection (-40°C to 80°C), irregular shapes	Up to 8K	Command centers, events
Linsn	Cost-effective, easy cascade (TS08: 5.2M pixels)	5.2M+	Signage, budget installs
Colorlight	Stability, high refresh, per-pixel calibration	High-res scalable	Outdoor/commercial

Sign Craft recommends Novastar for premium SMD projects, ensuring seamless integration with their custom displays.

Selecting the Right Controller

• Resolution/Scalability: Ensure pixel load capacity (e.g., 5M+ for large SMD walls).
• Environment: Outdoor needs IP-rated, weatherproof units with wide temp range.
• Future-Proofing: Prioritize 8K/HDR for longevity.

Conduct a site survey for power/signal routing. In Pakistan, factor in humidity and dust for SMD screens.

Installation Guide

1. Site Prep: Survey for power (stable 220V), ventilation; mount near screen to reduce cabling.
2. Wiring: Connect inputs to controller, Ethernet to receiving cards; use shielded cables.
3. Configuration: Load software (e.g., NovaStar), map pixels, calibrate colors.
4. Testing: Check sync, brightness; run redundancy tests.

Sign Craft provides full installation for SMD/LED projects, handling controller integration flawlessly.

Maintenance and Troubleshooting

Regular checks extend life: Clean ports, update firmware quarterly.

• Common Issues: Flicker (check sync), color shift (recalibrate), no signal (cable/ports).
• Predictive Tools: Monitor via apps for heat/usage alerts.
• Pro Tip: Dual controllers for failover in critical apps.

Advanced Applications

Controllers enable command centers (multi-zone via H5), events (low-latency), and smart cities (automation). Future trends: AI auto-calibration, deeper AV integration.

For outdoor SMD in Pakistan, robust systems like Colorlight withstand monsoons.

Why Choose Sign Craft for Your LED Needs

As Pakistan's top SMD screen and LED display services provider, Sign Craft excels in deploying controller-optimized solutions. From vibrant indoor SMD screens to durable 3D LED signboards, their expertise ensures high-impact, eco-friendly signage with transparent pricing and nationwide service.

Their projects feature Novastar/Linsn controllers for reliability, perfect for retail, roads, and events.

Conclusion

Controller systems elevate LED displays from basic panels to dynamic powerhouses. Selecting synchronous pros like Novastar or async simplicity unlocks potential, especially with partners like Sign Craft.
